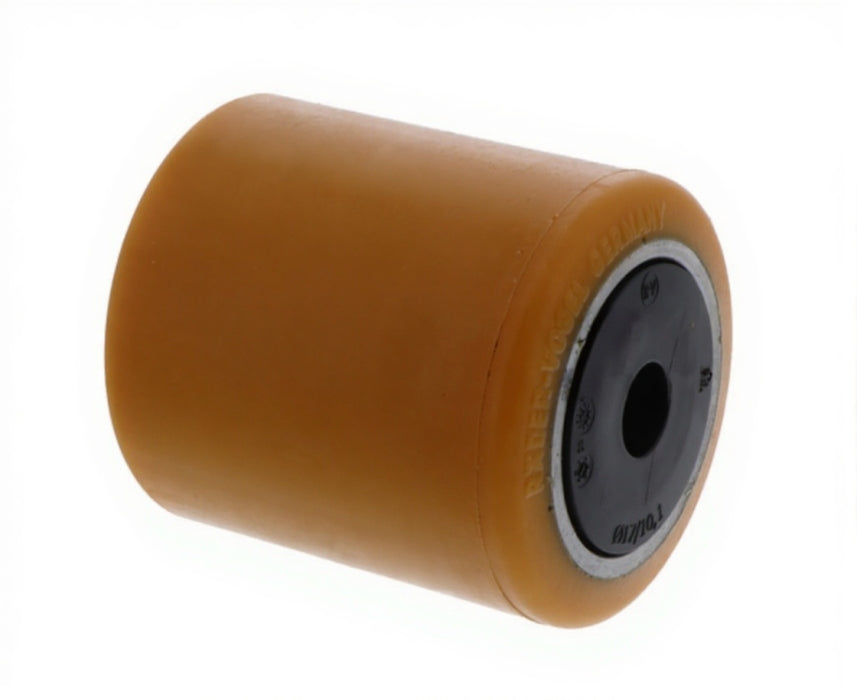

Standard polyurethane load roller with steel rim, ideal for electric pallet trucks, reach trucks, forklifts and other internal handling machinery.
The smooth, cylindrical polyurethane tread ensures smooth rolling, good traction and floor protection.

The roller is supplied complete with 2 labyrinth-sealed bearings, designed to work in harsh environments, even in the presence of dust and humidity, and is mounted on a 17 mm pin. It is also suitable for use in cold storage rooms , making it ideal for refrigerated warehouses and cold logistics.

Advantages

• Wear-resistant polyurethane tread

• Smooth and silent scrolling

• Good traction when handling loads

• It leaves no marks on the floor (non-marking)

• Bearings with labyrinth seal for improved protection against dirt and moisture

• Also suitable for use in cold storage rooms

Technical features

• Brand: RÄDER VOGEL

• Type: standard load roller

• Assembly: with bearings

• Roller / tread material: polyurethane

• Rim material: steel

• Roller diameter (D1): 84 mm

• Roller width (W1): 100 mm

• Circle diameter (D2): 56 mm

• Rim width (W2): 100 mm

• Wheel profile: smooth

• Tread shape: cylindrical

Bearings and bore:

• Number of bearings: 2

• Bearing type: labyrinth seal

• Pin diameter (hole): 17 mm

• Clamping length: 102 mm

Other specifications:

• Toothed ring: absent

• Seeger groove: absent

• Reduction bushing: absent

• Bushing between bearings: absent

• Thread guards: absent

• Grease nipple: absent

• Cold storage suitability: yes

• Weight: 1.37 kg

Ideal as a replacement for worn or damaged load rollers on industrial equipment requiring 84mm diameter, 100mm width and 17mm pin mounting with labyrinth sealed bearings.
