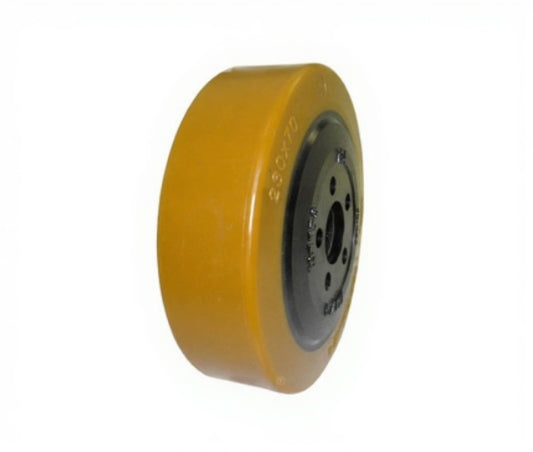

Standard traction wheel with polyurethane tread and cast iron body, ideal for electric pallet trucks, reach trucks, forklifts and other internal handling machinery.
The smooth polyurethane tread, with 85 Shore A hardness, offers a good compromise between comfort, durability and grip, suitable for standard use 8 hours/day (1 shift) .

The wheel is equipped with a 5-hole flange for fixing and a 45 mm central hole, with a 77.5 mm long hub and a 9.5 mm thick flange, ready for direct mounting on the crankshaft.

Advantages

• Polyurethane tread for standard use (1 shift/day)

• Good traction when handling loads

• Relatively soft ride compared to stiffer solutions

• Non-marking: Leaves no marks on the floor in most applications

• Robust cast iron rim for traction applications

Technical features

• Type: standard traction drive wheel

• Tread / Wheel Material: Polyurethane (Standard use 8 hours/day)

• Tread hardness: 85 Shore A

• Rim material: cast iron

• Wheel diameter (D1): 230 mm

• Wheel width (W1): 70 mm

• Circle diameter (D2): 170 mm

• Rim width (W2): 70 mm

• Wheel profile: smooth

Connection and flange:

• Shaft seat diameter: 45 mm

• Hub length: 77.5 mm

• Flange thickness: 9.5 mm

• Number of fixing holes: 5

• Bolt hole diameter (D13): 13 mm

• Circular pitch (PCD – D15): 70 mm

Other specifications:

• Cold storage suitability: no

• Cams: absent

• Closed side: no

• Weight: 4.68 kg

Suitable as a replacement drive wheel for electric trolleys and handling equipment requiring a diameter of 230 mm, width of 70 mm, a 45 mm centre hole and a 5-hole flange on a 70 mm PCD.
